CPU Type:Compact
Model Number:6ES7314-6CH04-0AB0
Processor Speed:Up to 600kHz
Digital Inputs (DI):24
Digital Outputs (DO):16
Analog Inputs (AI):4
Analog Outputs (AO):2
PT100 Compatibility:Yes
High-Speed Counters:4
Integrated DP Interface:Yes
Power Supply:24V DC
Work Memory:192KB
Dimensions (WxDxH):13.20 x 15.20 x 13.10 cm
Weight:0.733 kg
Connectivity:MPI/DP, Micro Memory Card Required
Operating Voltage:208-240V AC
Amps (CT):4.2A max
Nominal Frequency:600 Hz

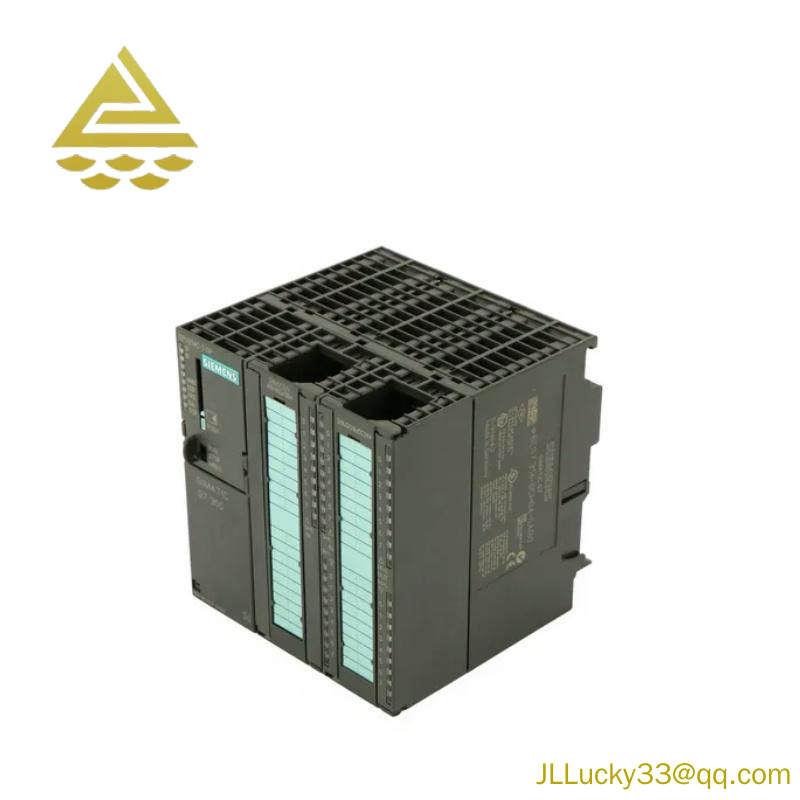

At the heart of every industrial automation system lies the SIEMENS 6ES7314-6CH04-0AB0 Compact CPU, designed with precision and reliability in mind. This CPU model is a testament to the latest advancements in industrial computing, boasting an array of features that make it indispensable for various manufacturing applications.
With its 24 digital input and output channels, the CPU ensures seamless integration with various sensors and actuators, facilitating efficient control over production lines. The inclusion of 4 analog inputs and 2 analog outputs allows for precise measurement and control of process variables, enhancing operational accuracy.
The integrated PT100 channel enables temperature monitoring, essential for processes requiring thermal control. The 4 high-speed counters operating at 60 kHz are ideal for tracking rapid events or high-frequency signals, ensuring no detail is overlooked in the fast-paced world of automation.
Equipped with an integrated 24 V DC power supply, this CPU ensures stable power delivery across all components, minimizing downtime and maximizing efficiency. The compact design, measuring 13.20 x 15.20 x 13.10 inches and weighing 0.733 kg, makes it versatile for various installation scenarios without compromising on functionality.
Featuring an integrated MPI/DP interface, this CPU facilitates easy communication within industrial networks, supporting seamless data exchange between different devices. Its compatibility with S7-300 software ensures a smooth integration with existing systems, streamlining the setup and maintenance processes.
