Power Rating (kW):0.2
Voltage (VAC):200
Servomotor Type:Flat; Pancake
Rated Speed (RPM):3,000
Max Speed (RPM):5,000
Mounting Type:Flange Mount
Encoder Type:Incremental Encoder
Bit Resolution:13 BIT
Constant Torque (Nm):0.75
Peak Torque (Nm):2.25
Peak Torque (in-oz):335
Constant Torque (in-oz):125
Constant Torque (in-lb):7.5
Peak Torque (in-lb):21
Brake:Yes
IP Rating:IP67
Approvals:UL; CE; cUL Recognized

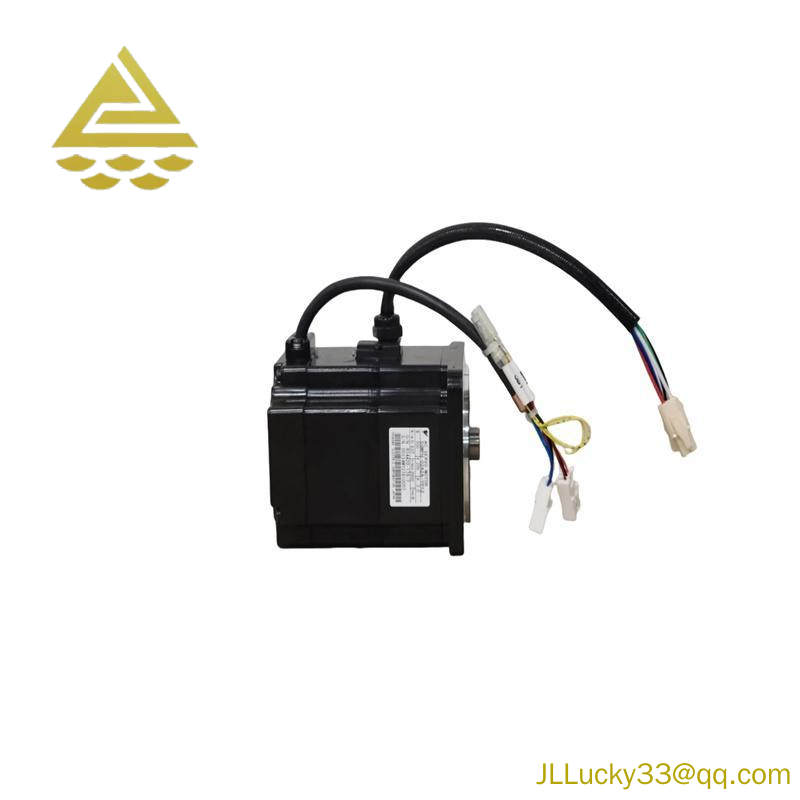

The Yaskawa SGMPH-02A2A-YR12 Servo Motor is designed for high-speed, precision motion control, essential for applications requiring accurate positioning and repeatability.
Featuring a flat, pancake design, this motor optimizes space utilization in compact industrial systems, enhancing efficiency without compromising performance.
Equipped with an incremental encoder and offering a resolution of 13 bits, it ensures reliable position feedback, critical for advanced automation tasks.
With a peak torque of 2.5 Nm and a constant torque of 0.85 Nm at rated speed, this motor delivers robust power for demanding applications, ensuring smooth operation under various load conditions.
The integrated brake system prevents unexpected movement when power is lost, ensuring safety and stability in dynamic industrial environments.
Certified for use in harsh environments, this motor is protected by an IP67 rating, making it suitable for outdoor or dusty settings where water resistance and dust protection are necessary.
